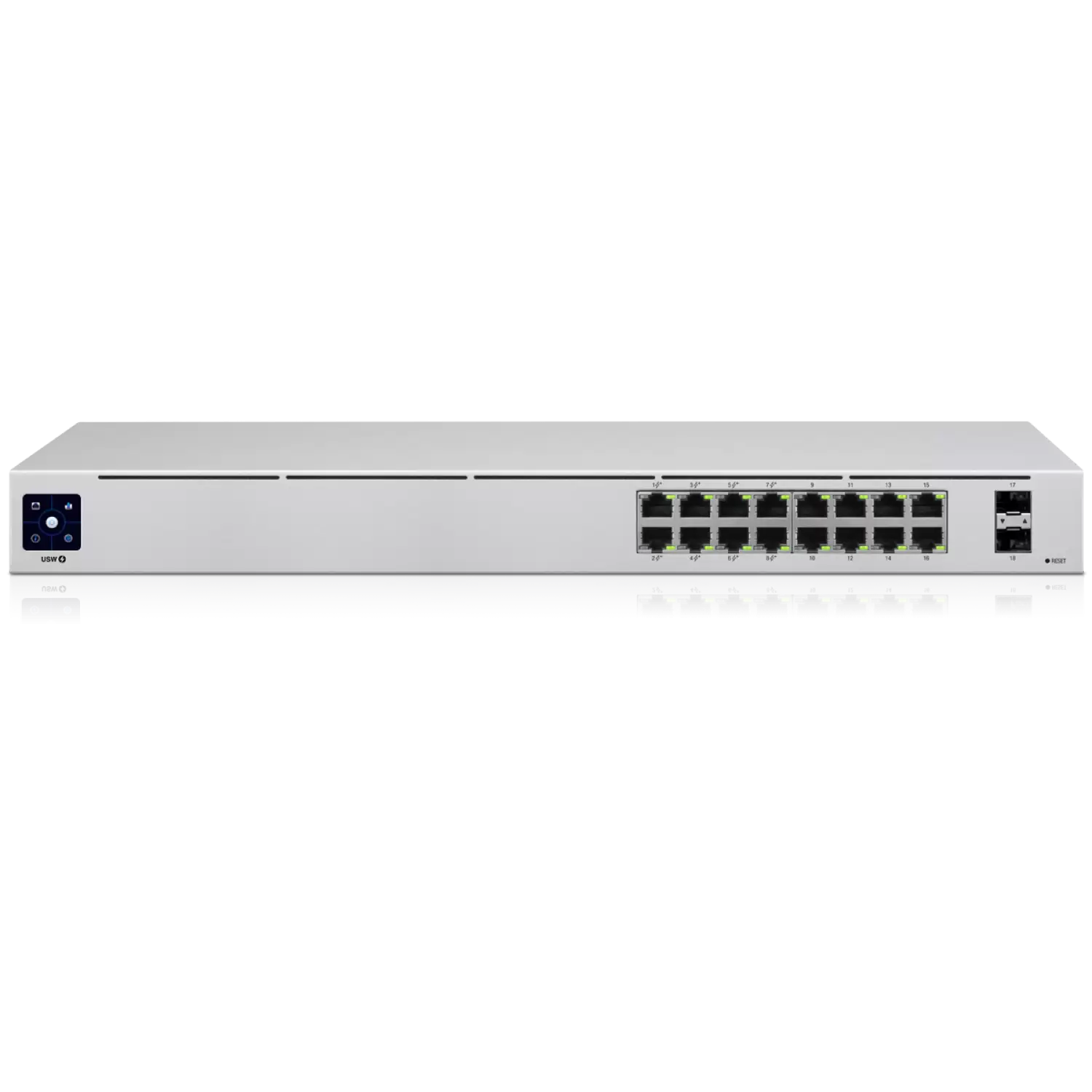

Ubiquiti UniFi Gen2 Switch 16 port PoE (USW-16-POE)

USW-16-POE
3567
Available
(5)Stock
Initial Price

415.85€

Price without VAT : 335.36€

Enter your destination to get a shipping estimate.
Orders are dispatched the same day, subject to availability and if placed by 12:00pm on a working day
AVAILABILITY
For bulk availability inquiries please call 210-2209582

  • Description

    UBNT-USW-16-POE - UniFiSwitch Gen2 16 port PoE

    The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network.


    The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.


    Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.








  • Specification

    USW-16-POE GEN2



    Dimensions

    424.4 x 200 x 43.7 mm



    (16.71 x 7.87 x 1.72")



    Weight

    2.80 kg (6.17 lb)



    With Rackmount Brackets

    2.89 kg (6.37 lb)



    Interfaces

    (16) 10/100/1000 RJ45 Ports



    Networking

    (2) 1G SFP Ethernet Ports



    Management

    Ethernet In-Band



    Power Method

    100-240VAC/50-60 Hz, Universal Input



    Power Supply

    AC/DC, Internal, 60W



    Supported Voltage Range

    100 to 240VAC



    Max. Power Consumption (Excluding PoE Output)

    18W



    LEDs



    System

    Status



    RJ45 Data Ports

    PoE; Speed/Link/Activity



    SFP Data Ports

    Link/Activity



    ESD/EMP Protection

    Air: ± 16 kV, Contact: ± 12 kV



    Shock and Vibration

    ETSI300-019-1.4 Standard



    Operating Temperature

    -5 to 40° C (23 to 104° F)



    Operating Humidity

    10 to 90% Noncondensing



    Certifications

    CE, FCC, IC



    POE



    PoE Interfaces

    POE+ IEEE 802.3af/at



    Ports 1-8

    (pins 1, 2+; 3, 6-)

    Max. PoE Wattage per Port by PSE  802.3at

    32W

    Voltage Range 802.3af Mode

    44-57V

    Voltage Range 802.3at Mode

    50-57V



  • Downloads

    Datasheet

UBNT-USW-16-POE - UniFiSwitch Gen2 16 port PoE

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network.


The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.


Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.








USW-16-POE GEN2



Dimensions

424.4 x 200 x 43.7 mm



(16.71 x 7.87 x 1.72")



Weight

2.80 kg (6.17 lb)



With Rackmount Brackets

2.89 kg (6.37 lb)



Interfaces

(16) 10/100/1000 RJ45 Ports



Networking

(2) 1G SFP Ethernet Ports



Management

Ethernet In-Band



Power Method

100-240VAC/50-60 Hz, Universal Input



Power Supply

AC/DC, Internal, 60W



Supported Voltage Range

100 to 240VAC



Max. Power Consumption (Excluding PoE Output)

18W



LEDs



System

Status



RJ45 Data Ports

PoE; Speed/Link/Activity



SFP Data Ports

Link/Activity



ESD/EMP Protection

Air: ± 16 kV, Contact: ± 12 kV



Shock and Vibration

ETSI300-019-1.4 Standard



Operating Temperature

-5 to 40° C (23 to 104° F)



Operating Humidity

10 to 90% Noncondensing



Certifications

CE, FCC, IC



POE



PoE Interfaces

POE+ IEEE 802.3af/at



Ports 1-8

(pins 1, 2+; 3, 6-)

Max. PoE Wattage per Port by PSE  802.3at

32W

Voltage Range 802.3af Mode

44-57V

Voltage Range 802.3at Mode

50-57V
