MikroTik LtAP LTE7 kit (LtAP-2HnD&R11e-LTE7) is an advanced, rugged router designed for logistics, public transport, and vehicle telemetry systems. The device is equipped with a dual-core MT7621AT processor (MMIPS architecture) clocked at 880 MHz and supported by 128 MB of RAM. Wireless WAN communication is handled by an integrated LTE Cat.7 modem, offering throughputs of up to 300 Mbps (DL) and 100 Mbps (UL). This module supports a wide range of FDD and TDD bands, including the B32 band, significantly improving performance in high-density environments. Local internet distribution for end devices is provided by an integrated wireless interface operating in the Wi-Fi 4 standard (2.4 GHz, 802.11b/g/n) with 2x2 MIMO technology. The entire system is managed by the RouterOS v7 operating system with a Level 4 license, enabling the implementation of advanced routing policies, VPN tunnels, and automation scripts.
What distinguishes LtAP from standard network infrastructure is its flexible interface and power architecture, designed for operation on the move. The device is equipped with three MiniSIM slots, enabling automatic roaming and operator switching when a fleet of vehicles crosses borders. The built-in GNSS module with an SMA connector for an external GPS antenna is a key element for tracking systems. The motherboard also includes two free miniPCIe slots, which allow for the installation of an additional LTE modem or a 5 GHz radio card, ensuring system scalability depending on the project.

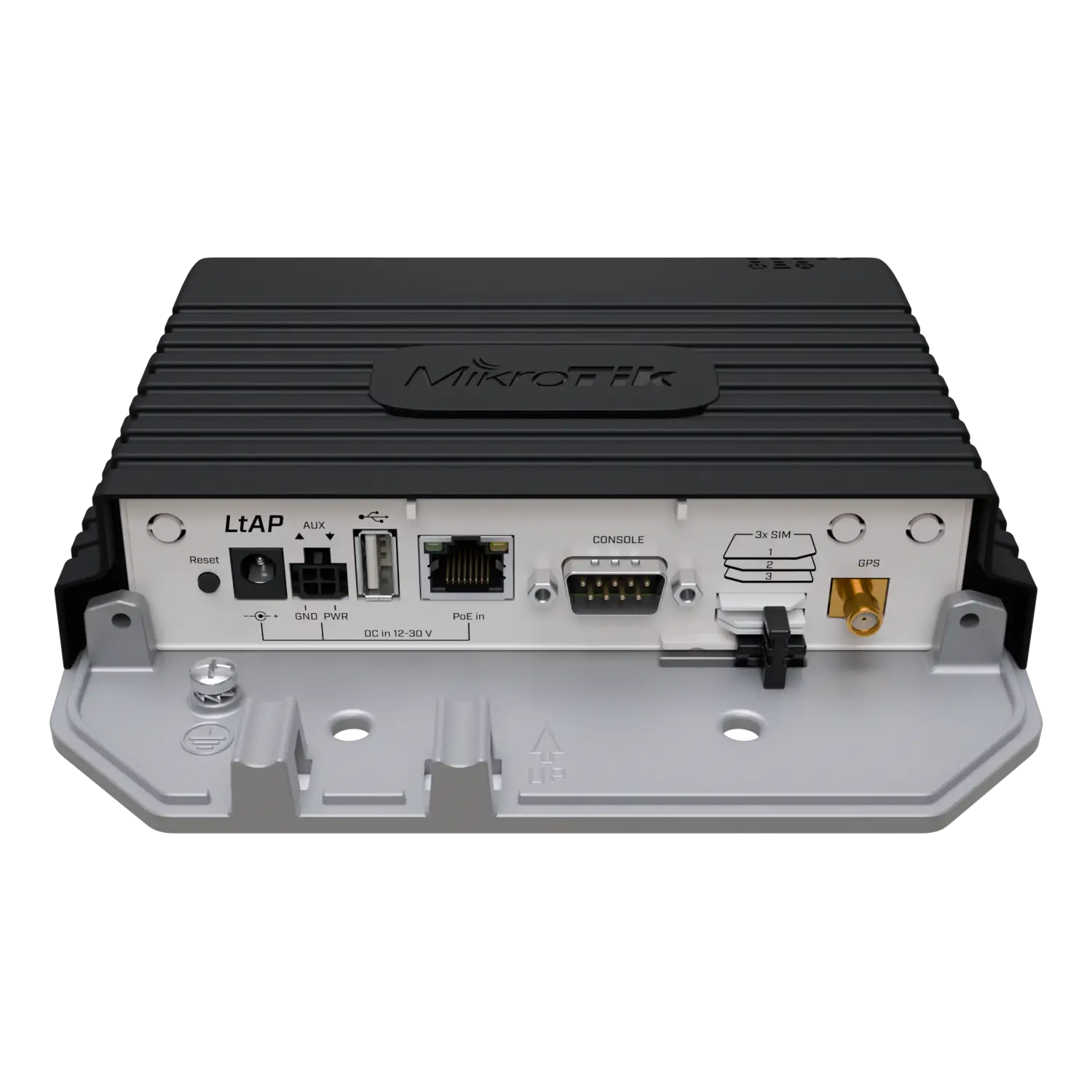

The device's design is IP54-rated and capable of operating in extreme temperatures ranging from -40°C to +70°C. The router supports triple energy redundancy. It can be powered via a classic DC Jack socket (12-30 V), PoE (Passive PoE on the Gigabit Ethernet port), or a dedicated Automotive connector (12-27 V), fully adapted for installation in vehicles.
Key features:
Processor and memory: MT7621AT (2 cores, 4 threads, 880 MHz), 128 MB RAM.
Operating system:RouterOS v7 (Level 4 License).
LTE modem: Category 7 (DL: 300 Mbps / UL: 100 Mbps).
Supported LTE bands (FDD/TDD): 1, 3, 5, 7, 8, 20, 28, 32 / 38, 40, 41.
Location: Built-in GPS/GNSS receiver (SMA antenna connector).
Expansion interfaces: 3x MiniSIM slot, 2x miniPCIe slot, 1x USB 2.0 (Type A).
Network interface: 1x RJ45 port 10/100/1000 Mbps, Wi-Fi 4 (2.4 GHz, 802.11b/g/n, 2x2 MIMO).
Power supply: DC Jack (12-30V), Automotive (12-27V), Passive PoE-in (12-30V). Max. consumption: 24 W.
Immunity and environment: Protection class IP54; Operating temperature range -40°C to +70°C.
