OPTON FUSION SPLICER SIGNAL FIRE AI-9

OP-SIGNAL-FIRE-AI-9

3526

Available

(2)Stock

Initial Price

1,322.00€

Price without VAT : 1,066.13€

Country

Region / State

Post Code

Enter your destination to get a shipping estimate.

Orders are dispatched the same day, subject to availability and if placed by 12:00pm on a working day

AVAILABILITY

For bulk availability inquiries please call 210-2209582

Description

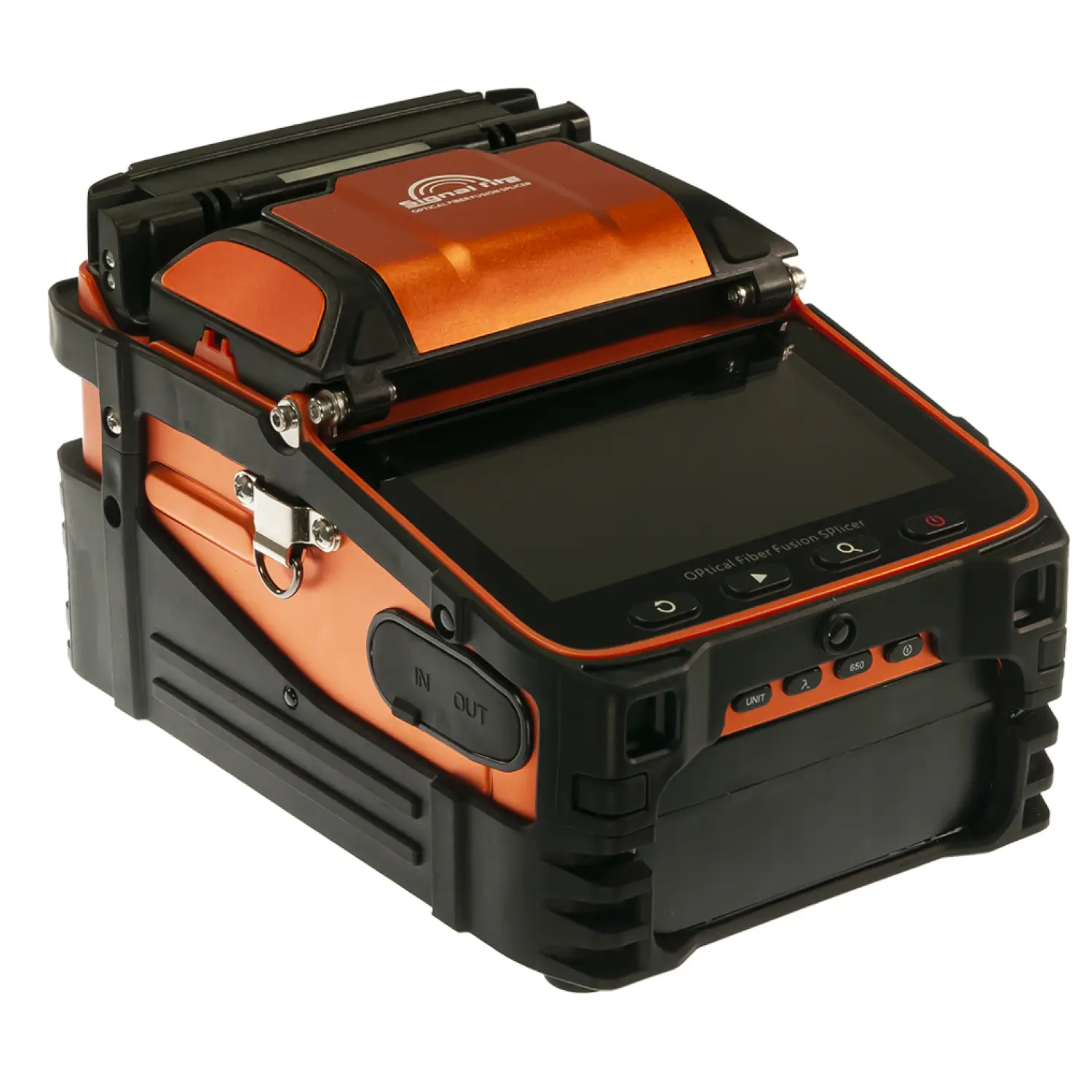

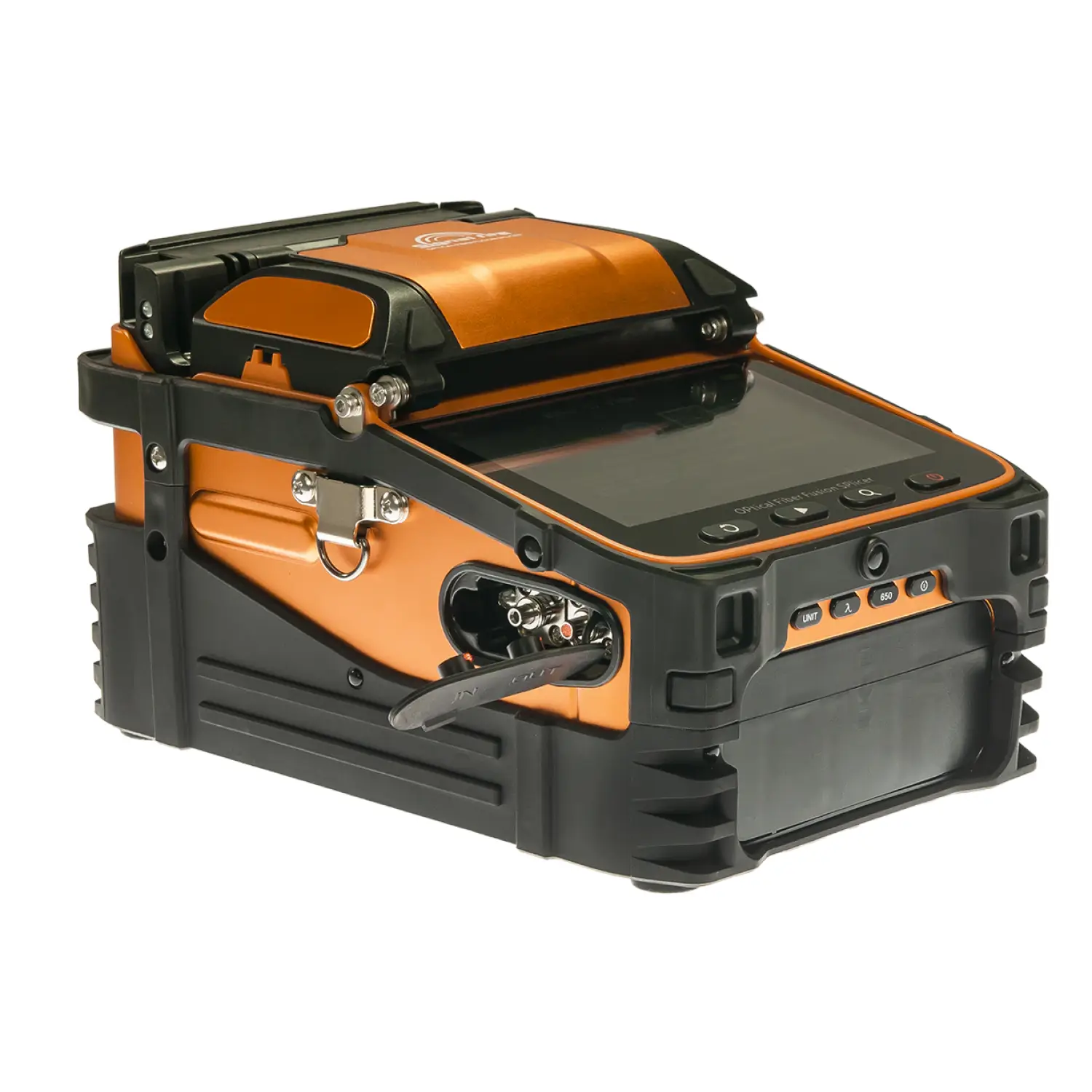

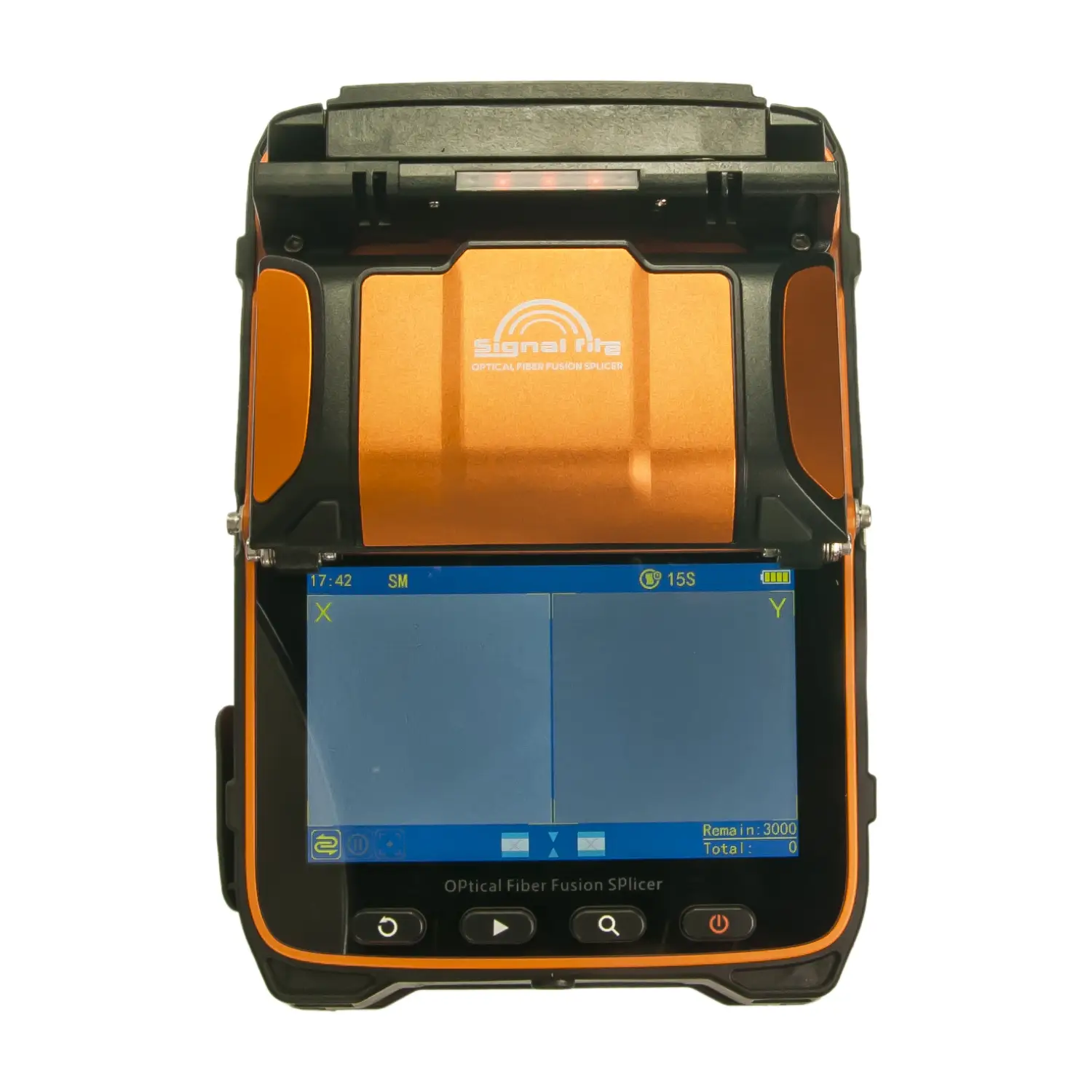

Opton Signal Fire AI-9 fiber optic splicer is a new version of the popular AI-7. The device is distinguished by centering to the core and a 300-fold magnification of the image. Compared to the older model, the speed of the spicing cycle has been improved - the fusion splice duration time is 5 s and the soaking time 15 s. The new Signal Fire performs equally strong and durable fusion splices as its predecessor, it will prove itself both as the main fusion splicer and a tool for installation in subscribers' premises.

The new version is equipped with a built-in power meter and a visual fault locator. The meter can operate at wavelengths of 850/1300/1310/1490/1550/1625 nm, so it will work in most applications. To check the quality of the cable in shorter connections, you can use the visual fault locator.

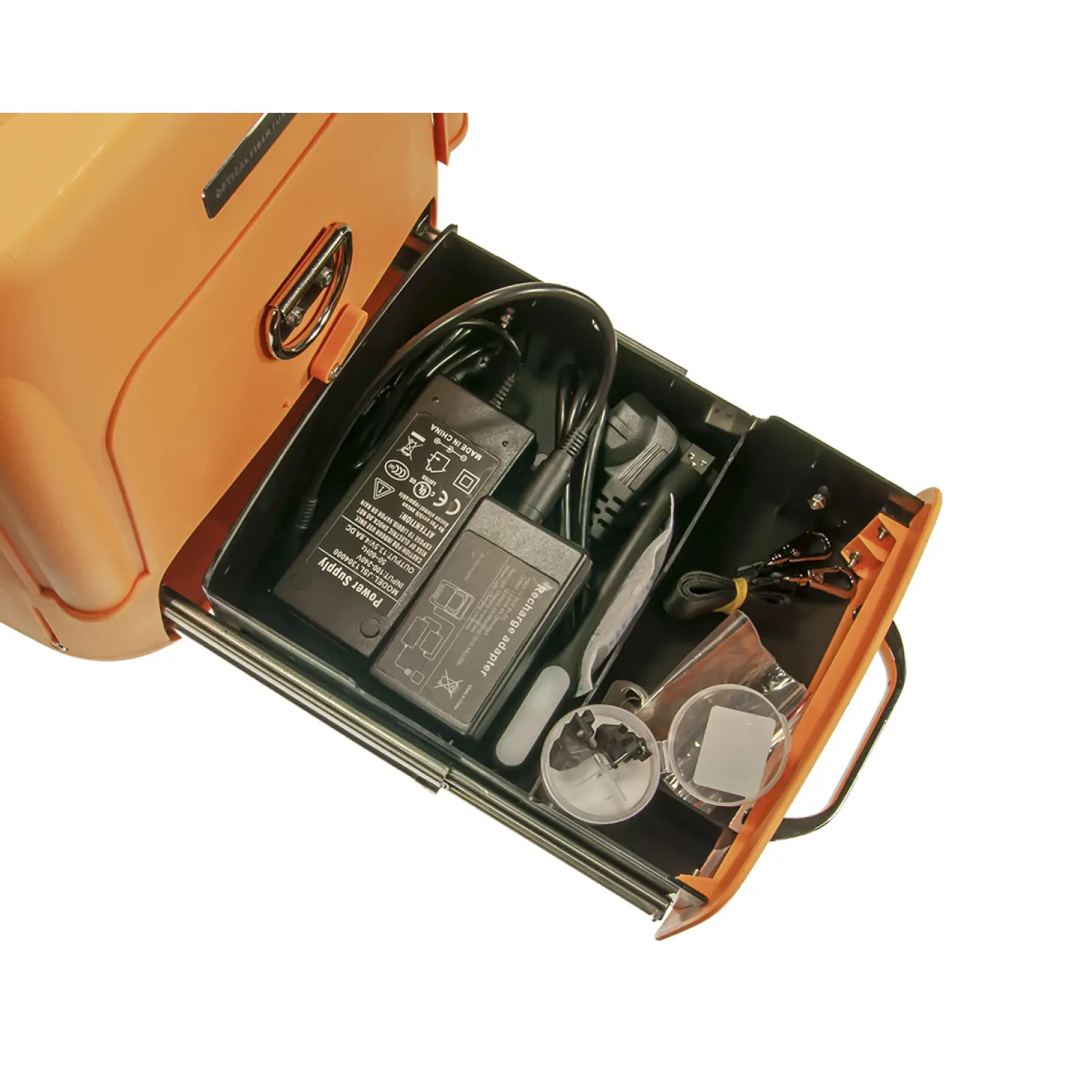

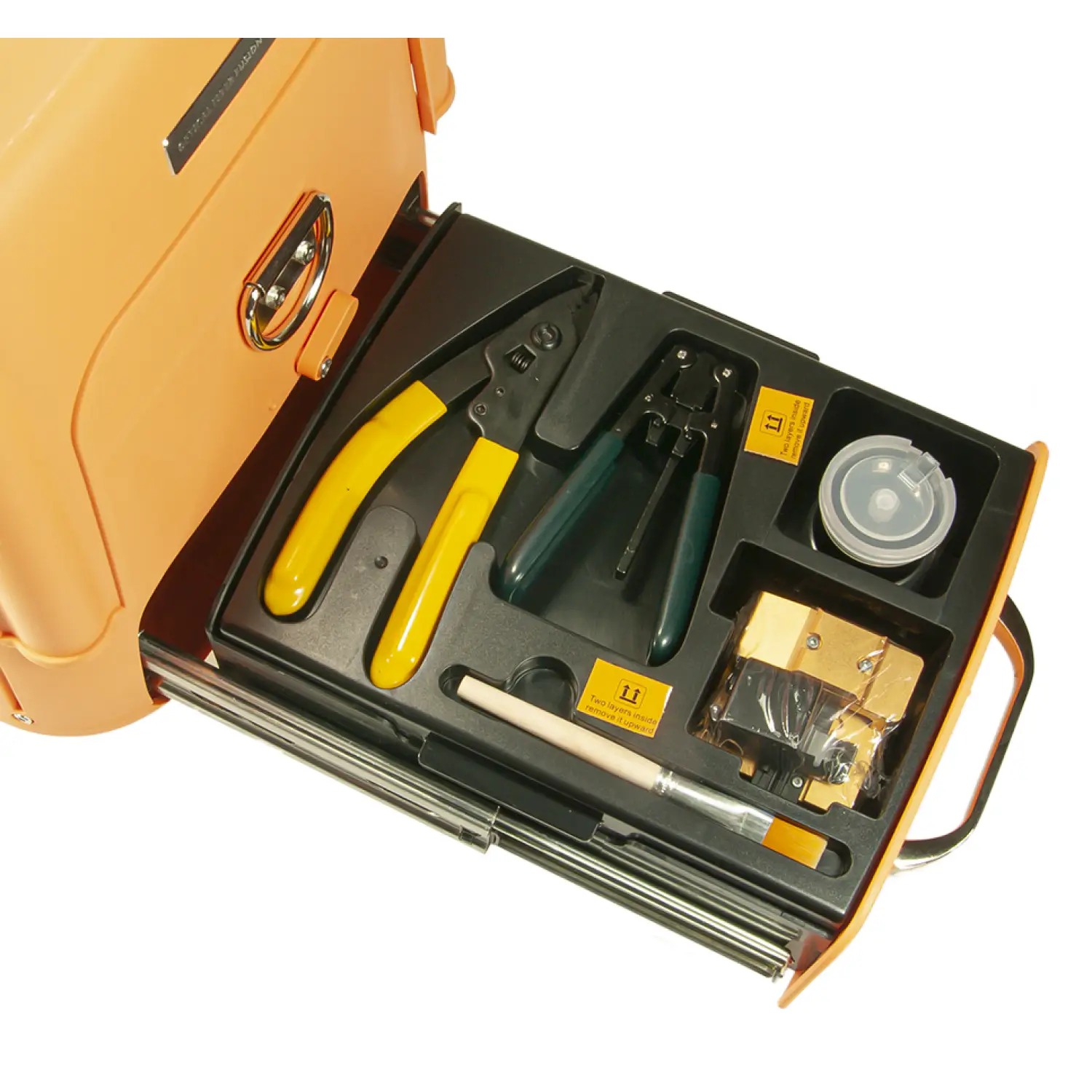

The device is closed in a handy box with numerous additional accessories. The set includes: a diamond knife for cutting fibers, electrodes, flat cable stripper, three-eye stripper (125/250/900 µm), power supply, alcohol dispenser and a brush (for cleaning). The fusion splicer has a universal holder, it can be used for SM, MM, DS and NZDS fibers. The software functions are available from the application for mobile devices with Android / iOS. The welder has an auto fusion splicing and annealing program, but more advanced settings must be configured on the mobile device.

The most important features:
- possibility of welding SM, MM, DS and NZDS fibers
- centering to the core
- welding time - 5 s
- soaking time - 15 s
- magnification up to 300 times
- built-in optical power meter
- built-in visual fault locator

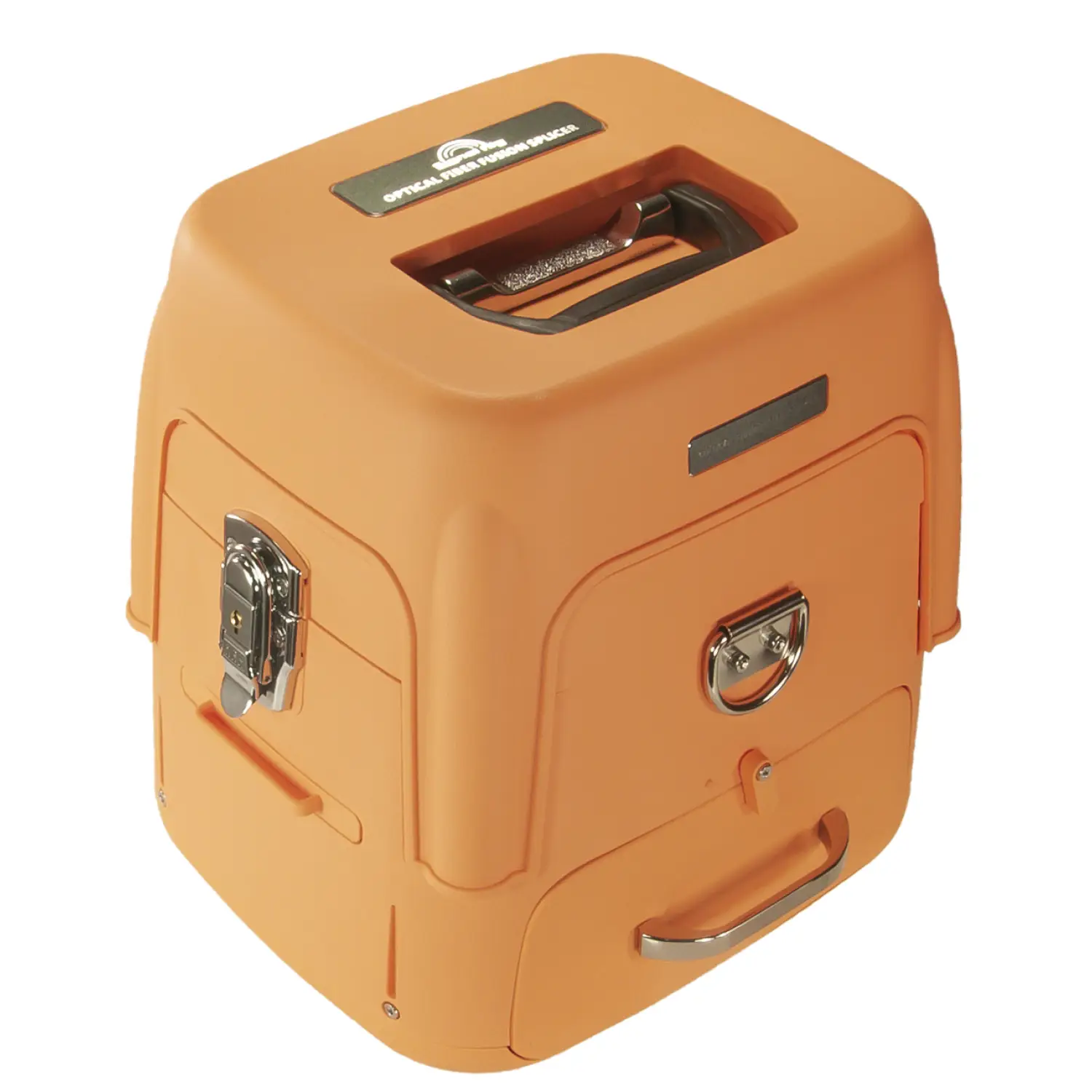

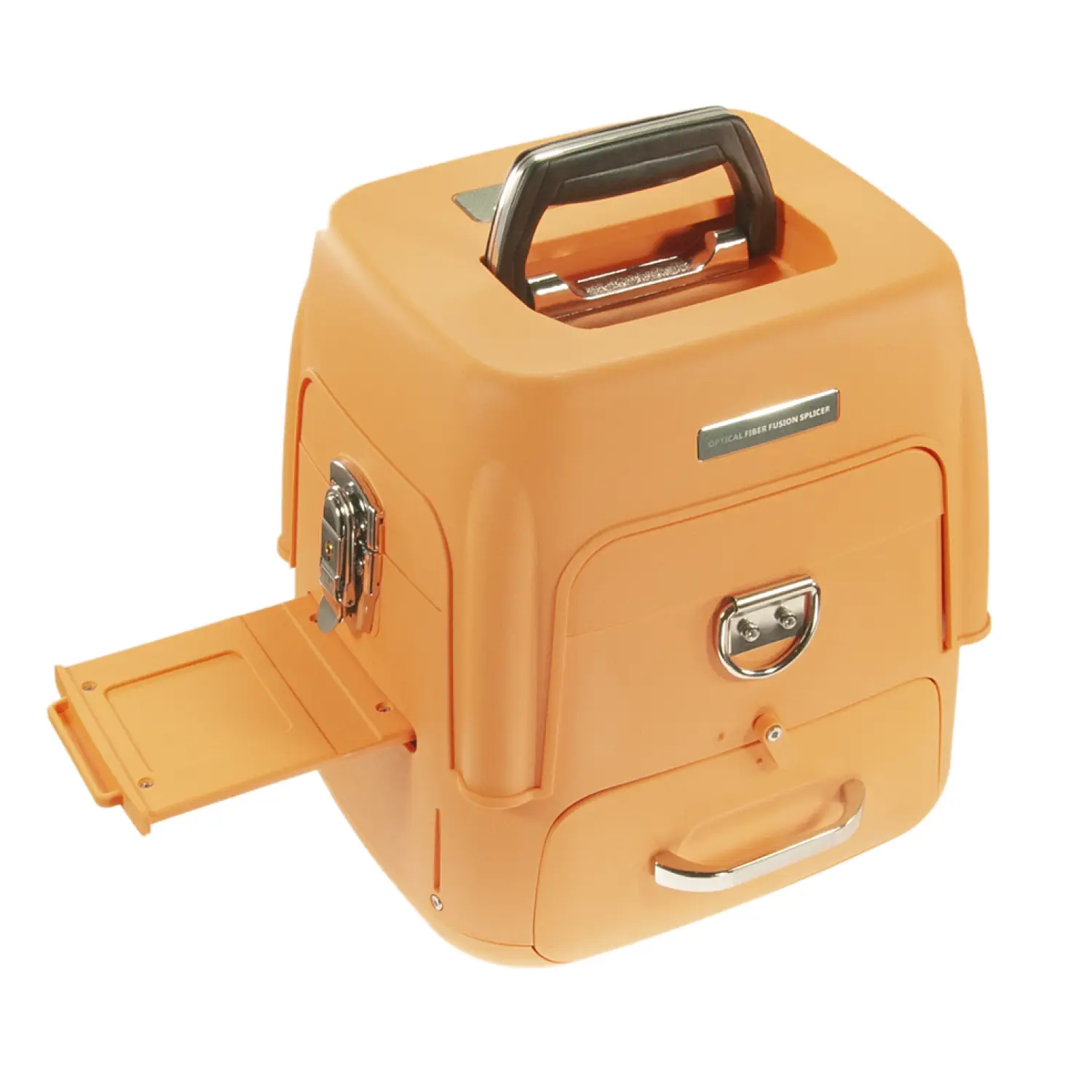

- a handy case with a drawer for tools and a stool
- numerous accessories.

Specification

SignalFire AI-9
Compatible fibers	SM (G.652 i G.657) MM (G.651) DS (G.657) NZDS (G.655)
Fusion splicing loss	SM: 0,025 dB MM: 0,01 dB DS / NZDS: 0,04 dB
Focus mode	Automatic
Centering	For core, cloak or manual
Fusion splicing duration time	about 5 s
Heating time	about 15 s
Splicing controll	Kontrolowanie w czasie rzeczywistym Kalibracja spawarka
Return loss	> 60 dB
Fiber diameter	with varnish: 80-150μm with cable insulation: 100-1000μm
Fiber length after cut	fiber without insulation 250µm: 8 - 16 mm with insulation 250-1000μm: 16 mm
Splice protectors	40 mm 60 mm
VFL - Visual Fault Locator	Power: 15 mW
Power meter	Wavelength: 850 nm 1300 nm 1310 nm 1490 nm 1550 nm 1625 nm Measure range: -70 ~ 6 dB
Stress test	2 N

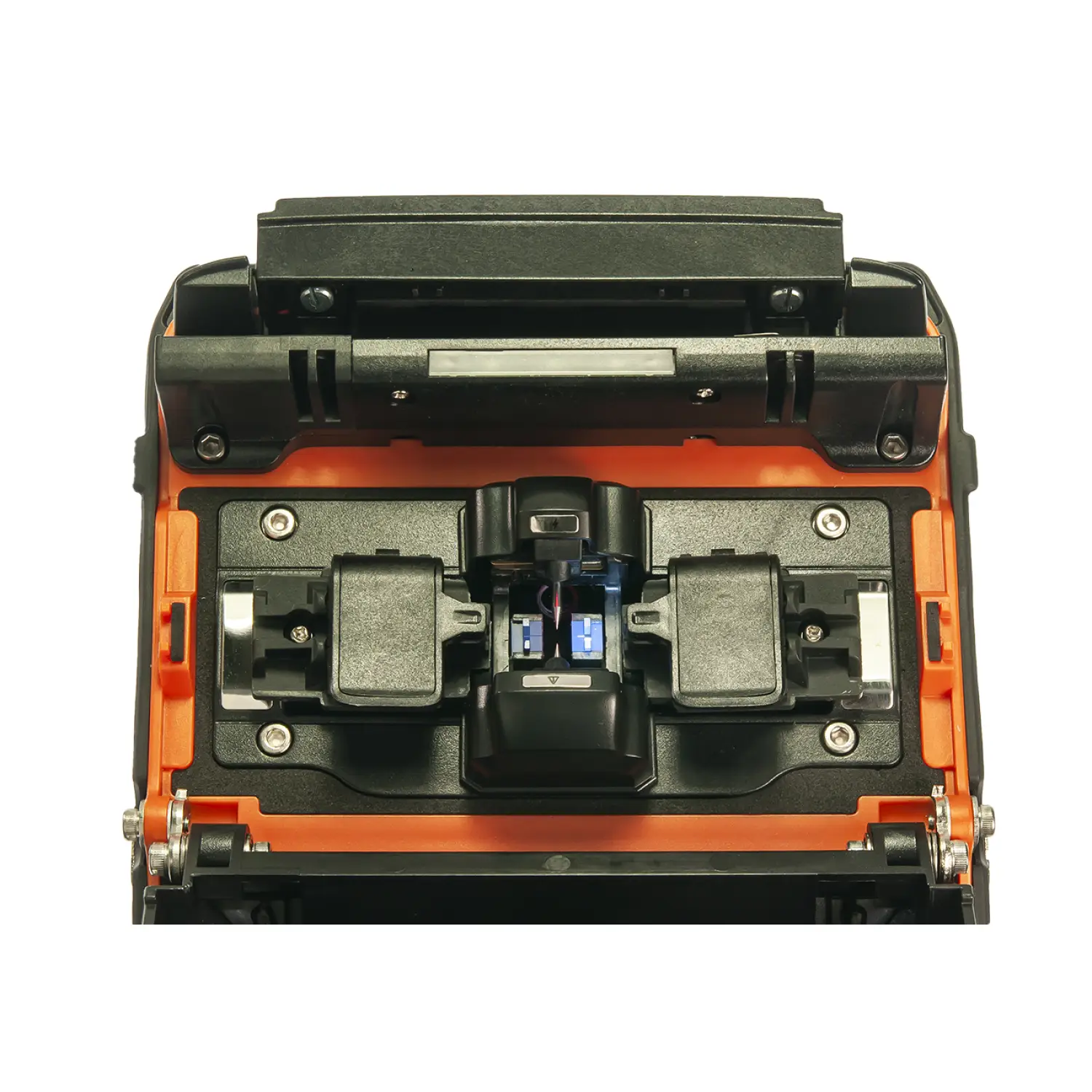

Holders	Universal holders for various types of fibers
Magnification	to 300 times
Display	5,1" color TFT
Software update	Poprzez aplikacj? na urz?dzenia mobilne
Fusion splicing modes	Normal or precison
Memorization of splices	Sync with phone or cloud

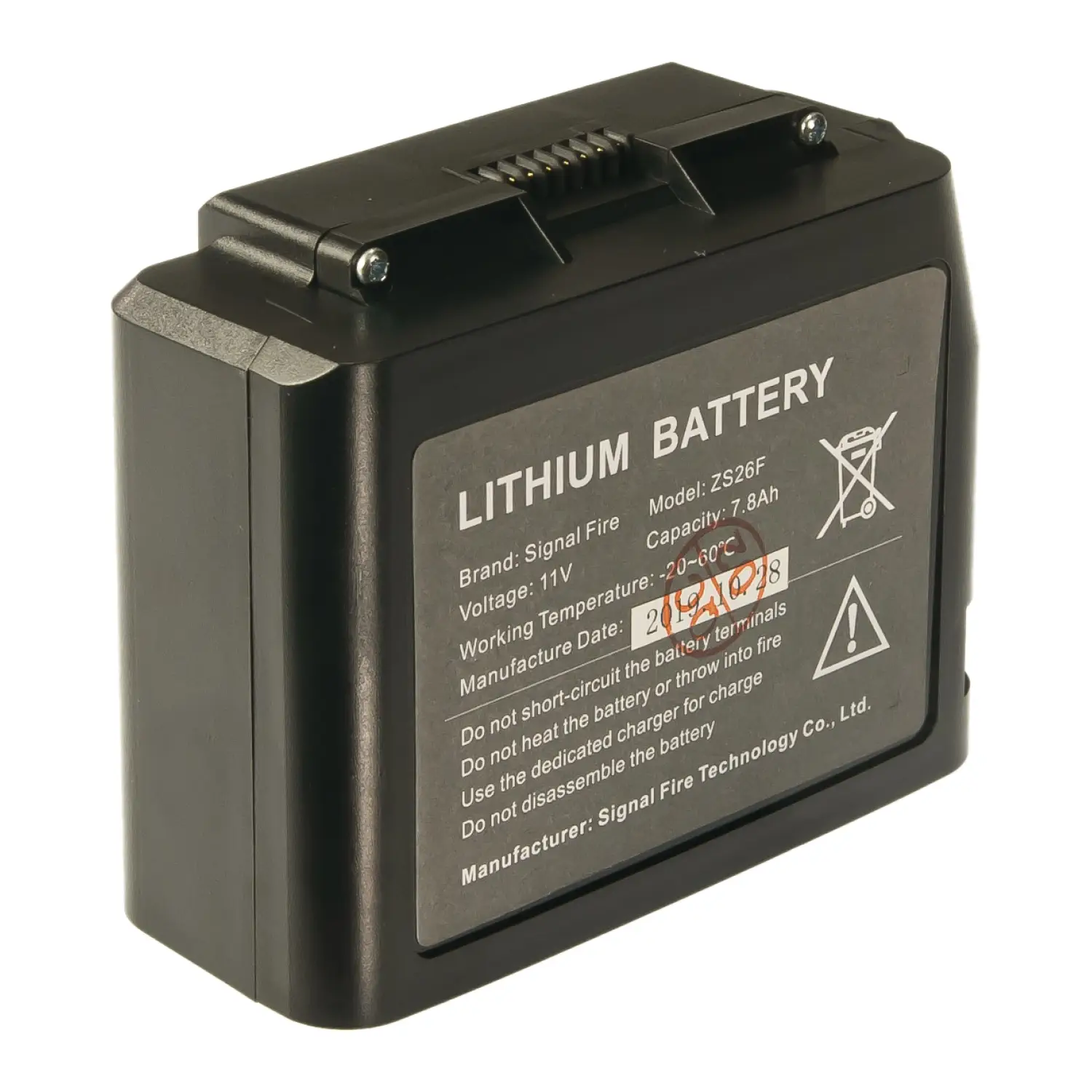

Built in battery	Capacity 7800 mA Charging time: about 3,5 hours It allows for 240 cycles splicing / heating

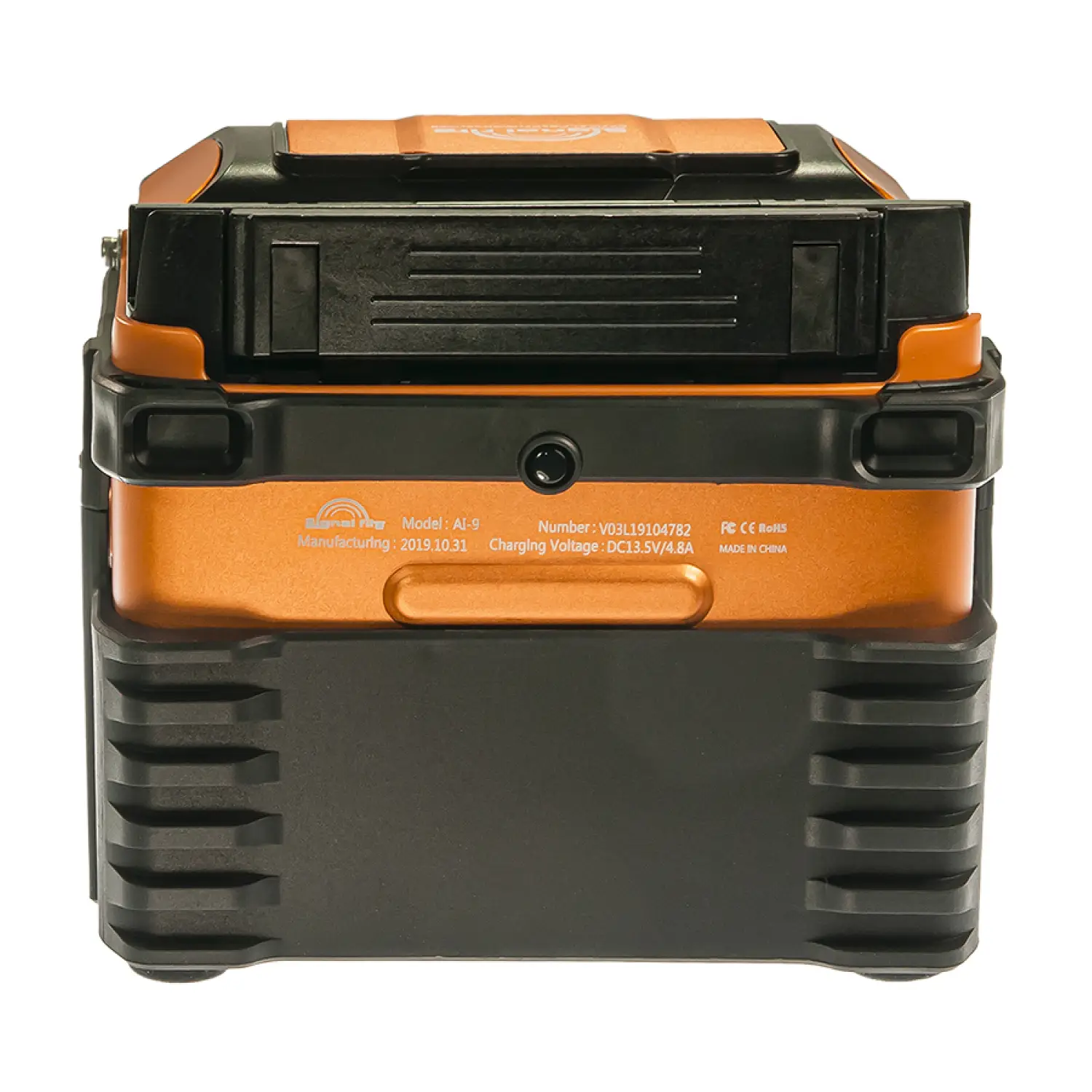

Power	13,5 V DC / 4,8 A
Flashlight	External
Operating temperature	From -15 to 50 °C
Permissible air humidity	< 95% RH non-condensing

Downloads

Datasheet

Opton Signal Fire AI-9 fiber optic splicer is a new version of the popular AI-7. The device is distinguished by centering to the core and a 300-fold magnification of the image. Compared to the older model, the speed of the spicing cycle has been improved - the fusion splice duration time is 5 s and the soaking time 15 s. The new Signal Fire performs equally strong and durable fusion splices as its predecessor, it will prove itself both as the main fusion splicer and a tool for installation in subscribers' premises.

The new version is equipped with a built-in power meter and a visual fault locator. The meter can operate at wavelengths of 850/1300/1310/1490/1550/1625 nm, so it will work in most applications. To check the quality of the cable in shorter connections, you can use the visual fault locator.

The device is closed in a handy box with numerous additional accessories. The set includes: a diamond knife for cutting fibers, electrodes, flat cable stripper, three-eye stripper (125/250/900 µm), power supply, alcohol dispenser and a brush (for cleaning). The fusion splicer has a universal holder, it can be used for SM, MM, DS and NZDS fibers. The software functions are available from the application for mobile devices with Android / iOS. The welder has an auto fusion splicing and annealing program, but more advanced settings must be configured on the mobile device.

The most important features:

possibility of welding SM, MM, DS and NZDS fibers
centering to the core
welding time - 5 s
soaking time - 15 s
magnification up to 300 times
built-in optical power meter
built-in visual fault locator
a handy case with a drawer for tools and a stool
numerous accessories.

SignalFire AI-9
Compatible fibers	SM (G.652 i G.657) MM (G.651) DS (G.657) NZDS (G.655)
Fusion splicing loss	SM: 0,025 dB MM: 0,01 dB DS / NZDS: 0,04 dB
Focus mode	Automatic
Centering	For core, cloak or manual
Fusion splicing duration time	about 5 s
Heating time	about 15 s
Splicing controll	Kontrolowanie w czasie rzeczywistym Kalibracja spawarka
Return loss	> 60 dB
Fiber diameter	with varnish: 80-150μm with cable insulation: 100-1000μm
Fiber length after cut	fiber without insulation 250µm: 8 - 16 mm with insulation 250-1000μm: 16 mm
Splice protectors	40 mm 60 mm
VFL - Visual Fault Locator	Power: 15 mW
Power meter	Wavelength: 850 nm 1300 nm 1310 nm 1490 nm 1550 nm 1625 nm Measure range: -70 ~ 6 dB
Stress test	2 N
Holders	Universal holders for various types of fibers
Magnification	to 300 times
Display	5,1" color TFT
Software update	Poprzez aplikacj? na urz?dzenia mobilne
Fusion splicing modes	Normal or precison
Memorization of splices	Sync with phone or cloud
Built in battery	Capacity 7800 mA Charging time: about 3,5 hours It allows for 240 cycles splicing / heating
Power	13,5 V DC / 4,8 A
Flashlight	External
Operating temperature	From -15 to 50 °C
Permissible air humidity	< 95% RH non-condensing
