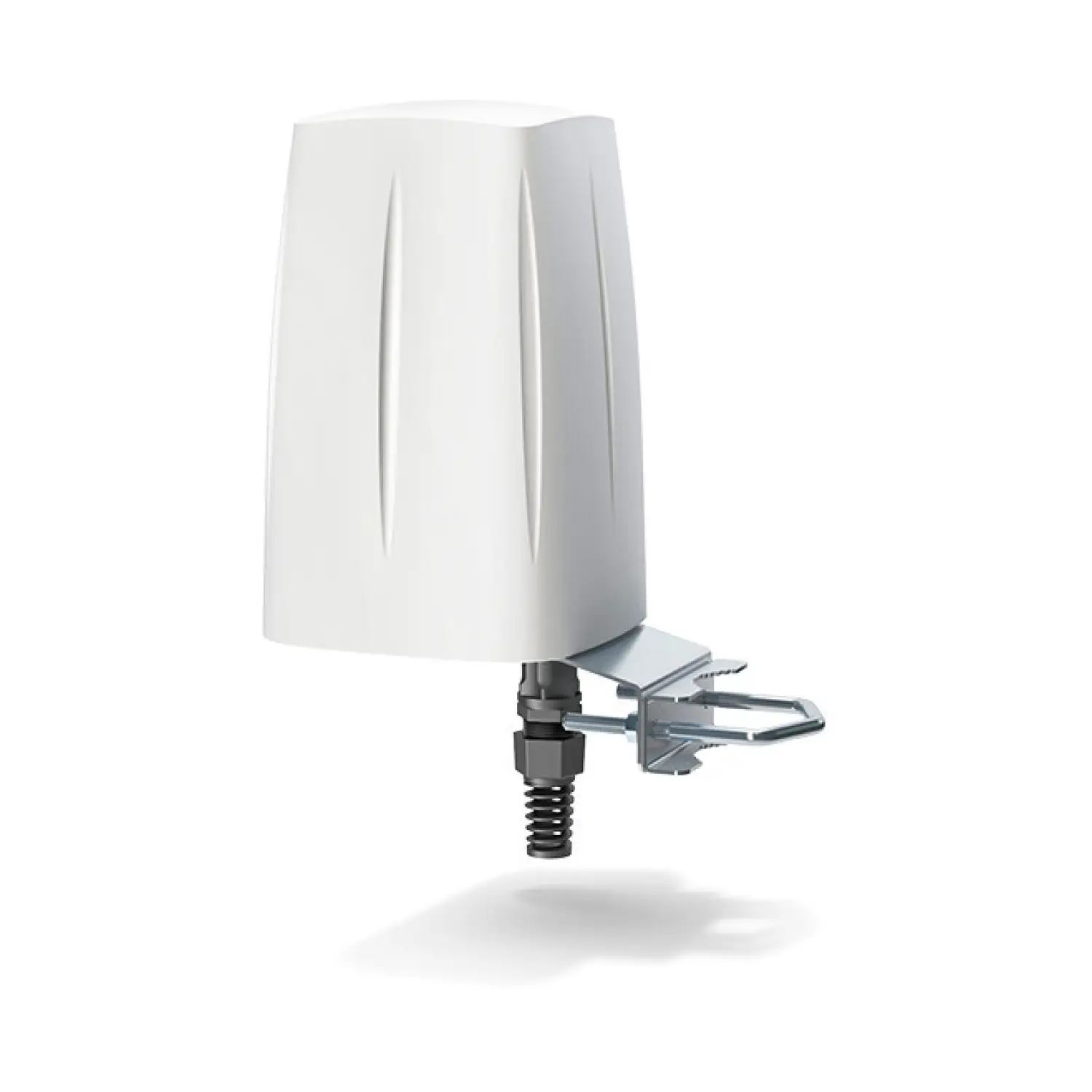

Antenna QuSpot for Teltonika RUTX50

AX50S
4601
Available
(1)Stock
Initial Price

231.01€

Price without VAT : 186.30€

Enter your destination to get a shipping estimate.
Orders are dispatched the same day, subject to availability and if placed by 12:00pm on a working day
AVAILABILITY
For bulk availability inquiries please call 210-2209582

  • Description
    Antenna QuSpot for Teltonika RUTX50
    QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all-in-one solution that integrates a high-gain, omnidirectional 5G and Wi-Fi antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new, outdoor RUTX50 solutions.

    QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
    All antennas and Teltonika router integrated in one enclosure
    Outdoor antenna works in any weather conditions, IP67
    Antenna perfectly matched with the router

    • Passive PoE support
    • Easy to install
    • Dual SIM with auto Failover

  • Specification

    Features

    LTE ANTENNA SPECIFICATION

    Frequency

    0.617 - 0.96 GHz

    1.7 - 2.7 GHz

    3.3 - 4.3 GHz

    Supported LTE/5G bands

    1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

    Gain

    0.617 - 0.96 GHz : 2.5 dBi

    1.7 - 2.7 GHz : 4 dBi

    3.3 - 4.3 GHz : 4.5 dBi

    VSWR

    <2.00, max <2.50

    Beamwidth

    360°/35° ±5°

    Polarization

    Vertical

    Impedance

    50 Ω


    WI-FI ANTENNA SPECIFICATION

    Frequency

    2.40 - 2.50 GHz

    5.000 - 7.125 GHz

    Gain

    2.40 - 2.50 GHz : 6 dBi

    5.000 - 7.125GHz : 7.5 dBi

    VSWR

    <1.70, max <2.00

    Beamwidth

    360°/25° ±5°

    Polarization

    Vertical

    Impedance

    50 Ω


    FREQUENCY BANDS

    LTE / 4G

    GSM

    617 MHz5812131417181920262728294467687185103n81n82n83n89n100960 MHz

    LTE / 4G

    UMTS

    1710 MHz123491025333435363739n80n84n86n95n98n1012170 MHz

    LTE / 4G

    WCS

    DARS

    2300 MHz3040n972400 MHz

    LTE / 4G

    2400 MHz738415369n902700 MHz

    LTE / 5G

    3300 MHz224243484952

  • Downloads

    Datasheet

Antenna QuSpot for Teltonika RUTX50
QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all-in-one solution that integrates a high-gain, omnidirectional 5G and Wi-Fi antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new, outdoor RUTX50 solutions.

QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
All antennas and Teltonika router integrated in one enclosure
Outdoor antenna works in any weather conditions, IP67
Antenna perfectly matched with the router

  • Passive PoE support
  • Easy to install
  • Dual SIM with auto Failover

Features

LTE ANTENNA SPECIFICATION

Frequency

0.617 - 0.96 GHz

1.7 - 2.7 GHz

3.3 - 4.3 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

0.617 - 0.96 GHz : 2.5 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.3 GHz : 4.5 dBi

VSWR

<2.00, max <2.50

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω


WI-FI ANTENNA SPECIFICATION

Frequency

2.40 - 2.50 GHz

5.000 - 7.125 GHz

Gain

2.40 - 2.50 GHz : 6 dBi

5.000 - 7.125GHz : 7.5 dBi

VSWR

<1.70, max <2.00

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω


FREQUENCY BANDS

LTE / 4G

GSM

617 MHz5812131417181920262728294467687185103n81n82n83n89n100960 MHz

LTE / 4G

UMTS

1710 MHz123491025333435363739n80n84n86n95n98n1012170 MHz

LTE / 4G

WCS

DARS

2300 MHz3040n972400 MHz

LTE / 4G

2400 MHz738415369n902700 MHz

LTE / 5G

3300 MHz224243484952
